Slim Profile — Fits to Fascia Below the Gutter
Slimline 50 Under Eave Awnings
The Slimline 50 Under Eave Awning is a custom-made aluminium
awning designed to sit neatly beneath the eaves of your home.
It is an under eave awning Sydney homeowners use where a
standard wall-mounted awning won’t fit — the frame mounts to
the fascia and the wall, keeping everything tight and flush.
Every awning is hand-built in Sydney using metal awning-grade
aluminium and powder coated for durability. Polycarbonate
sheeting is available in a range of colours to control light
and heat. Custom-made to your exact measurements and supplied
direct — no middlemen, no markup.
Fully welded 50×50mm aluminium frame, powder coated to your specification, and custom made to suit any width or projection. Supplied direct to builders, awning contractors and DIY self-installers Australia-wide.
Wall-mounted brackets
hold support arms that extend under the eaves
Arms support the awning panel
keeping the design slim and minimal
Fits to the fascia below the gutter
for a neat, unobtrusive appearance
Awning mounts to both fascia and arms
for a strong, professional finish
Custom-made
with up to 1065mm projection and widths up to 5 metres
Slimline 50

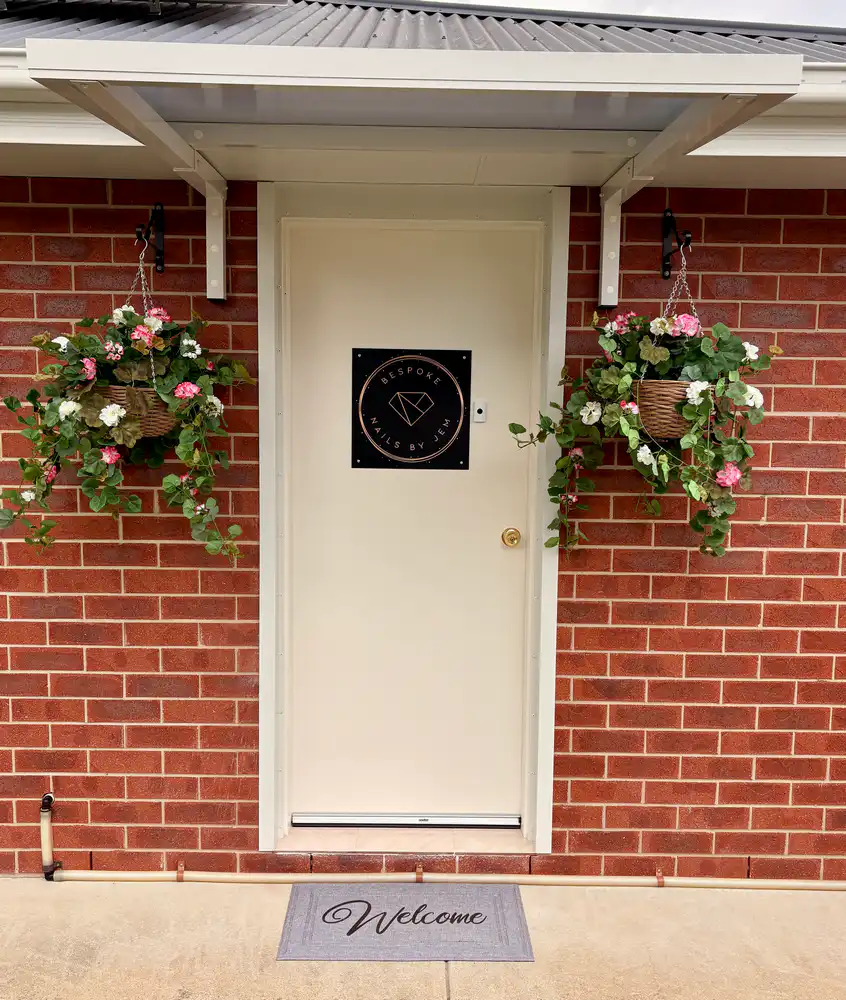

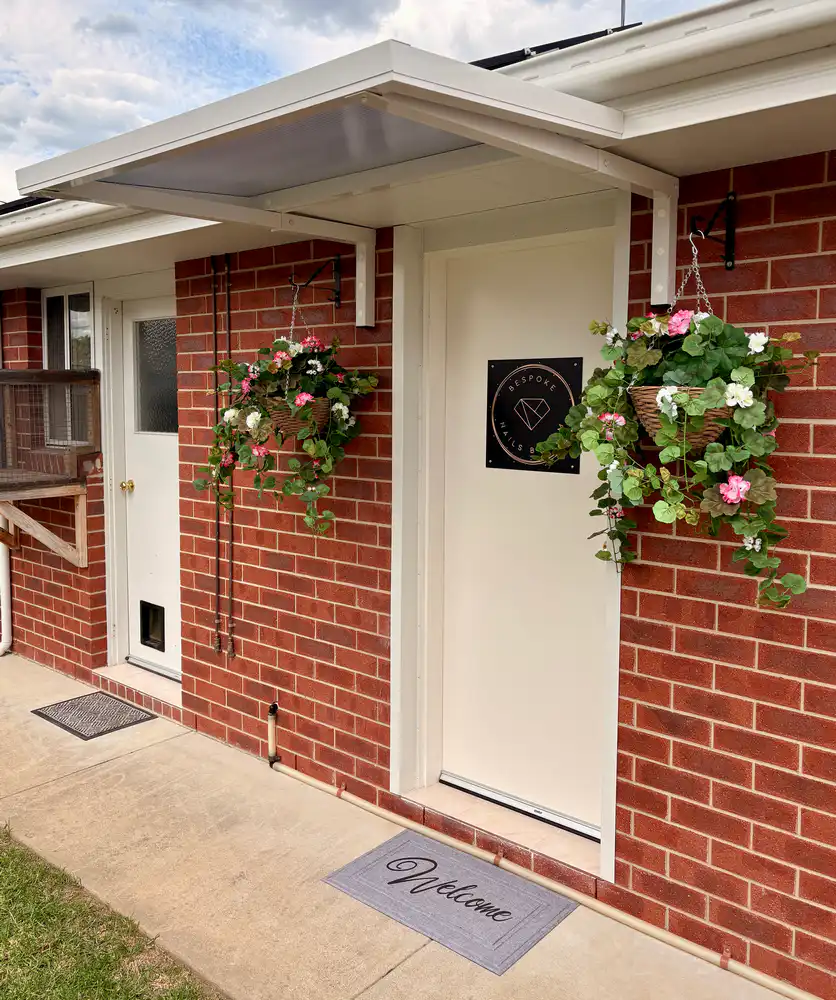

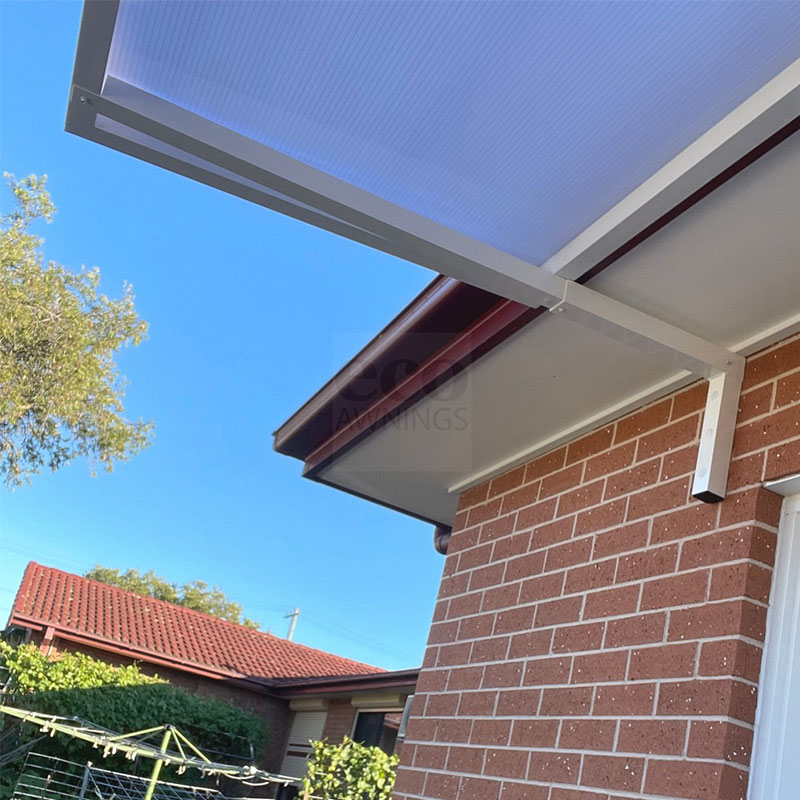

Gallery
Slimline 50

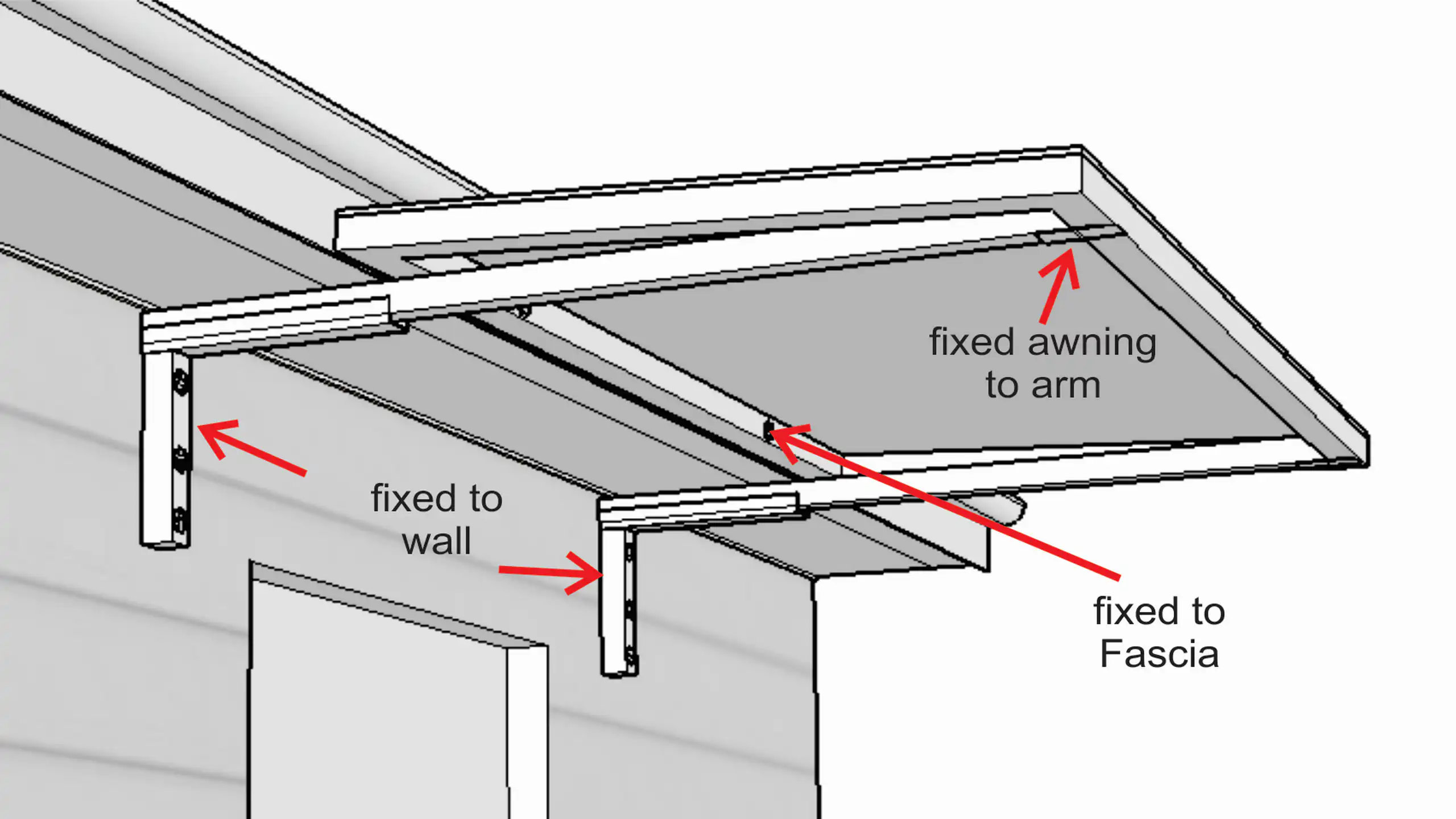

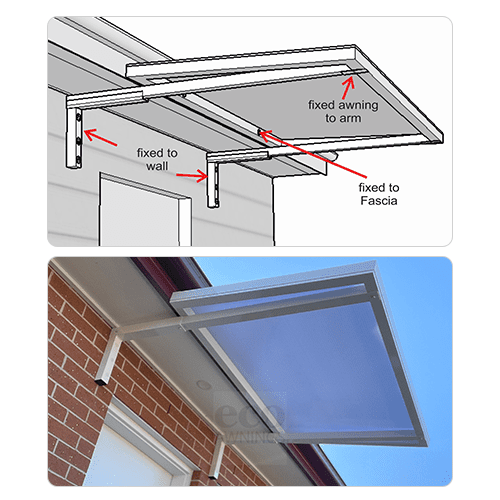

Under Eave Awning Frame & Fixing Details

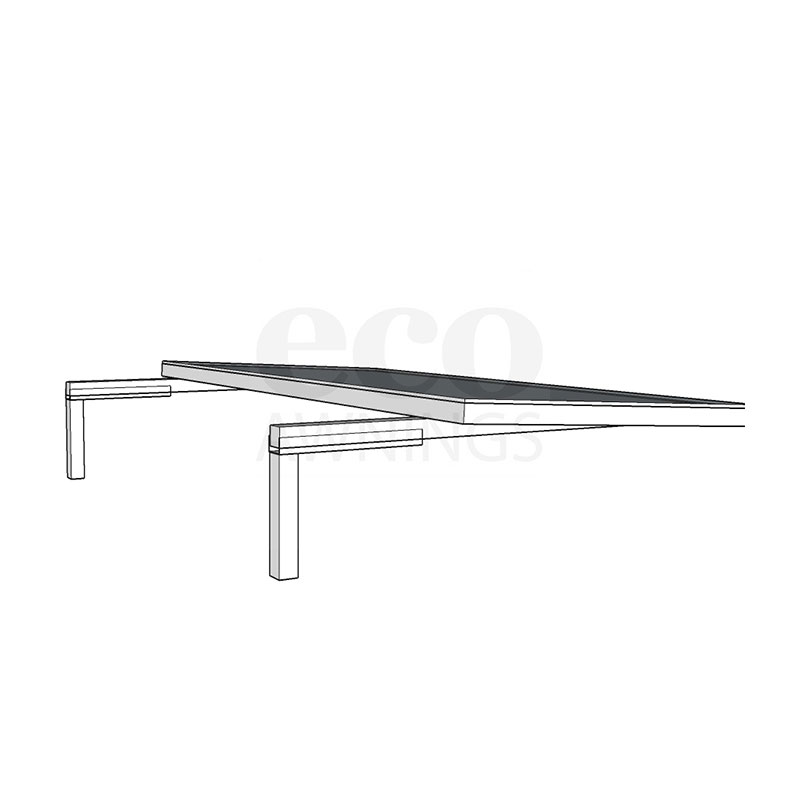

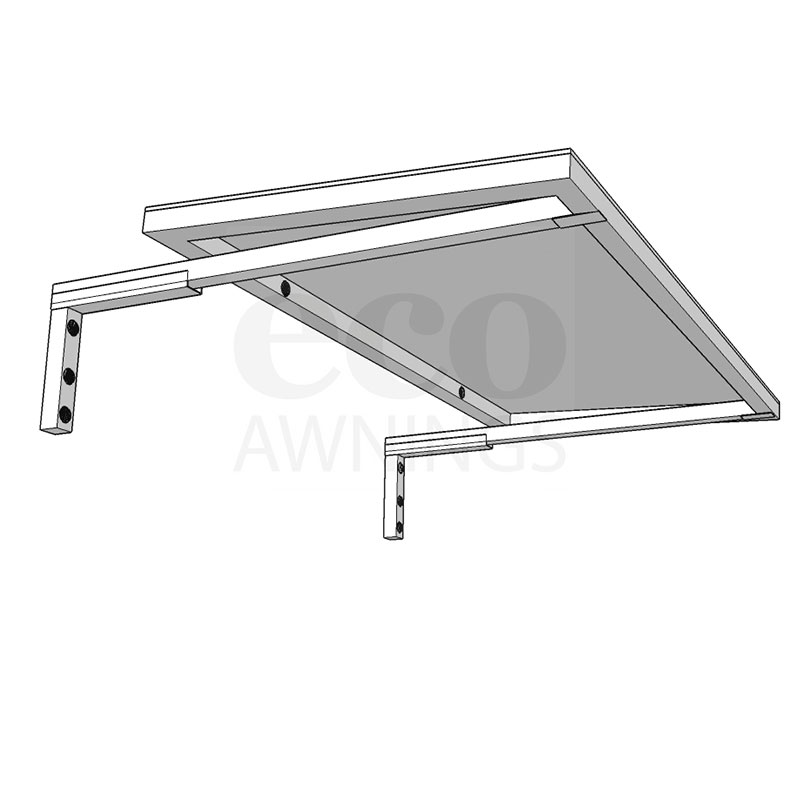

The Slimline 50 Under Eave Awning mounts directly to the wall with brackets supporting cantilever arms that extend beneath the eaves.
The awning panel sits on the arms and is fixed to the fascia just below the gutter.
This design maximises coverage by combining the eave depth with up to 1065mm projection, providing sleek, reliable shelter without the need for posts.
Installing Your Slimline 50 Under Eave — Overview
The Slimline 50 with Fixed Arms is the simplest custom aluminium awning we make. The arms are fully welded to the frame — the whole awning goes up as one piece, fixed directly into the timber studs behind your cladded wall. No assembly, no loose parts, no fuss..

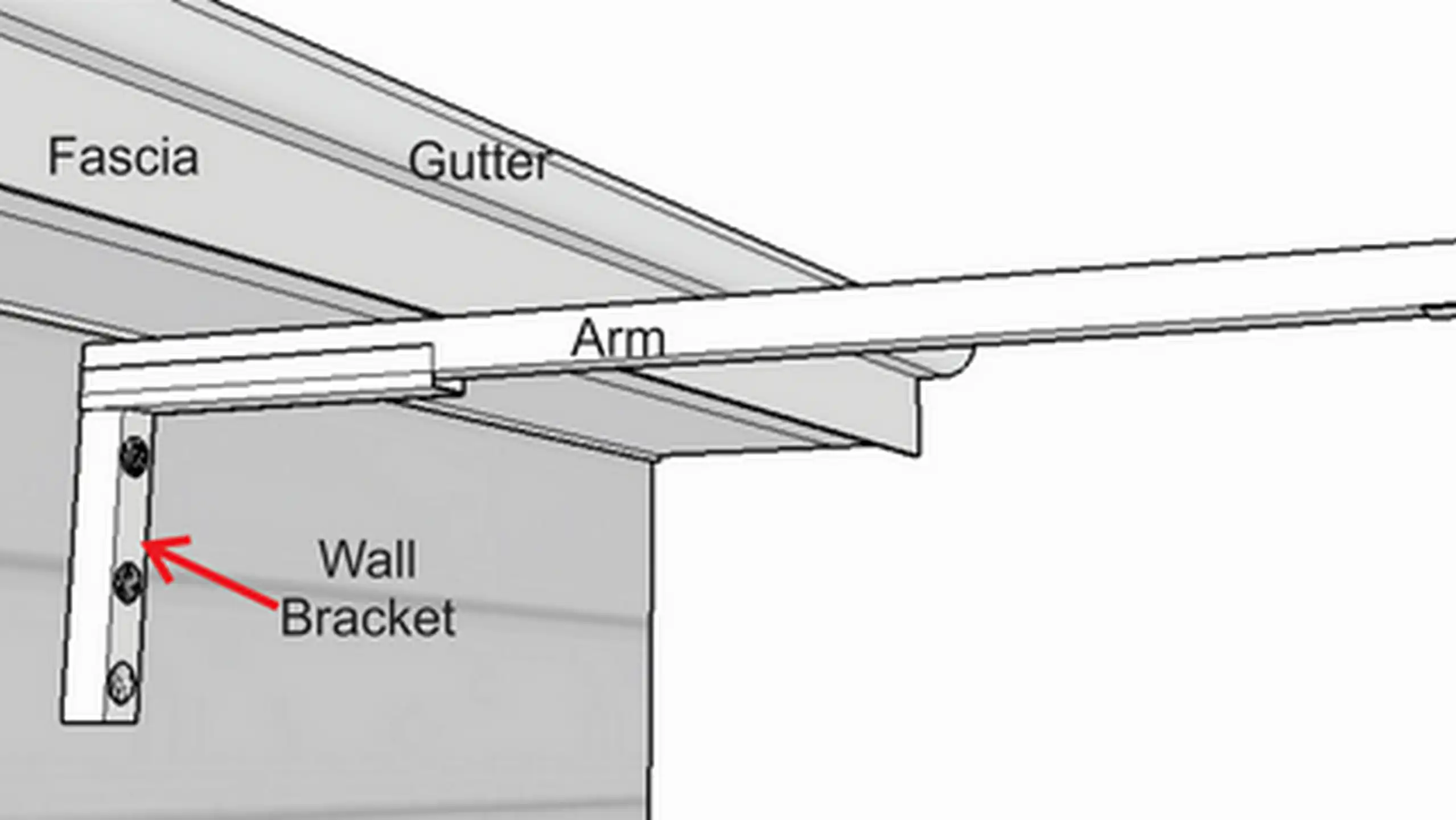

Step 1 — Fix the wall brackets and arms to the wall
Fix each wall bracket into the timber studs behind the cladding. Slot the arm in and push it hard up against the eave before locking off.
Step 2 —Lower the awning panel onto the arms
Lower the panel down onto the arms, seat the front rail onto the arm tongues and fix to the fascia at the rear.
Step 3 — Seal the awning to the wall
Run a bead of silicone along the rear where the awning meets the fascia. Done.

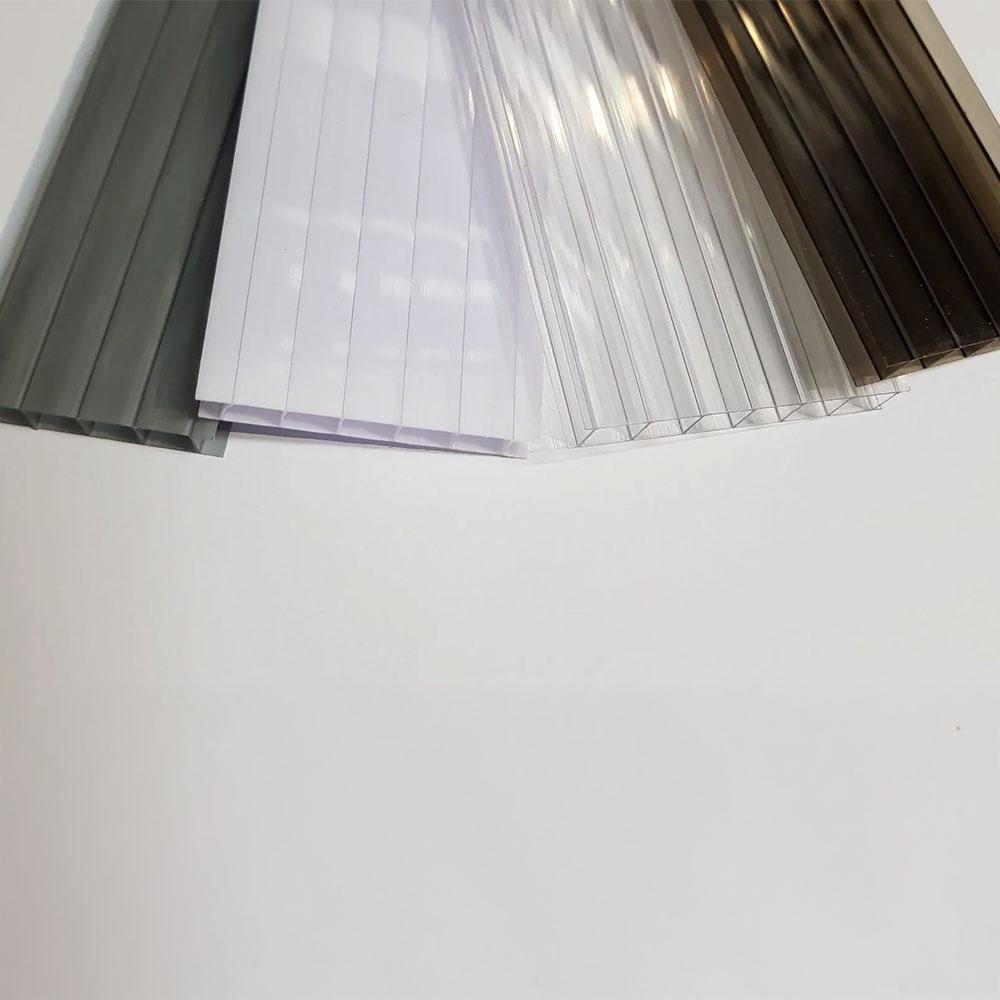

Polycarbonate Sheeting
Premium 10mm twin-wall polycarbonate:
Sealed directly to the aluminium frame for strength and durability
High impact resistance:
Lightweight yet strong — ideal for awnings in high-wind areas
Double-sided UV protection:
Blocks 99.9% of harmful UV rays while allowing natural light through
Heat reduction properties:
Multiwall design helps lower heat buildup beneath the awning
Acoustic benefits:
Provides sound insulation, reducing noise transfer
Modern colour range:
Available in Solar White, Solar Silver, Grey, Bronze, Clear
Powder Coating Finish
Durable, long‑lasting protection:
Powder coating forms a thick, uniform layer on the finished awning, protecting against corrosion, scratching, UV damage, and weathering
Dulux-grade quality:
We use premium Dulux powders for excellent adhesion, colour retention, and fade resistance in outdoor environments
Precision application process:
Once the awning frame is fully fabricated, it’s cleaned, prepared, then coated with electrostatically charged powder before being heat-cured to create a hard, durable finish
Superior to traditional paint:
The thicker coating resists chipping, peeling, and wear better than liquid paint — ideal for outdoor applications
Wide colour & texture options:

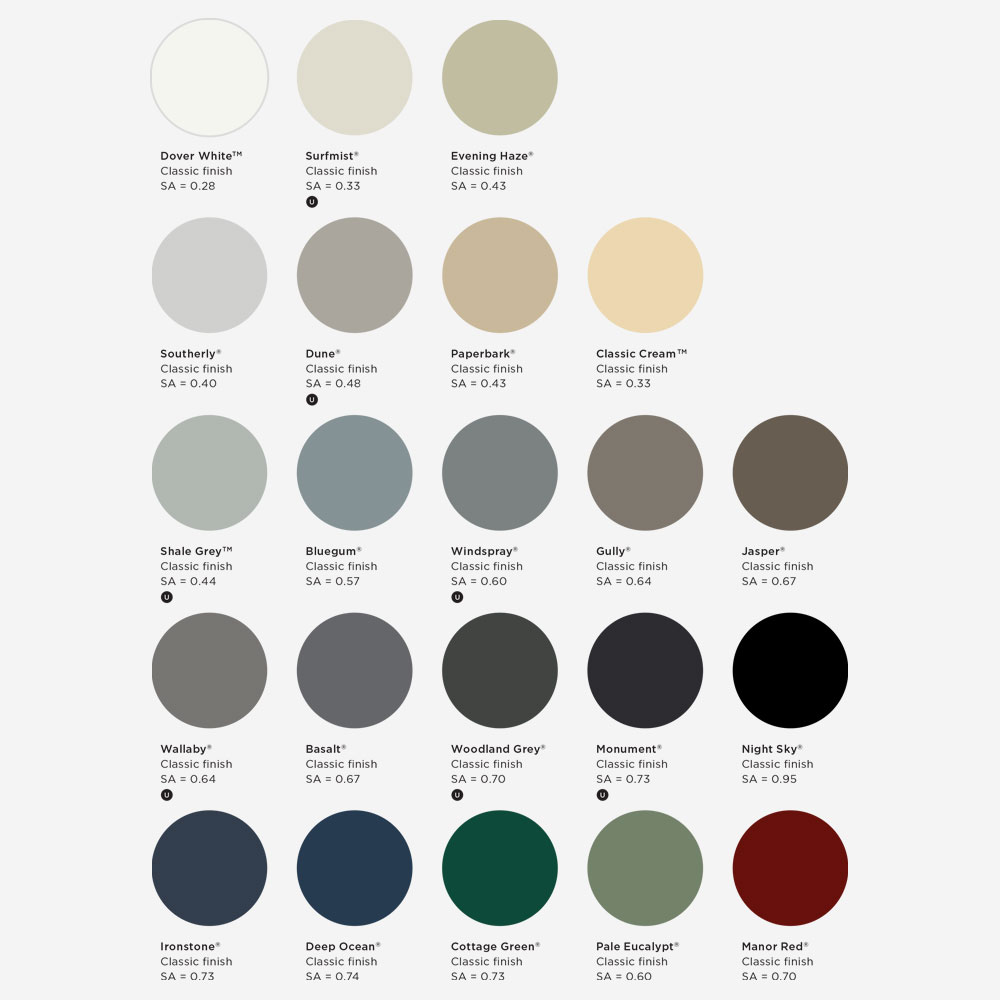

Choose from the full Colorbond® palette, Dulux custom colours, and a variety of finishes including gloss, satin, matte,
Slimline 50

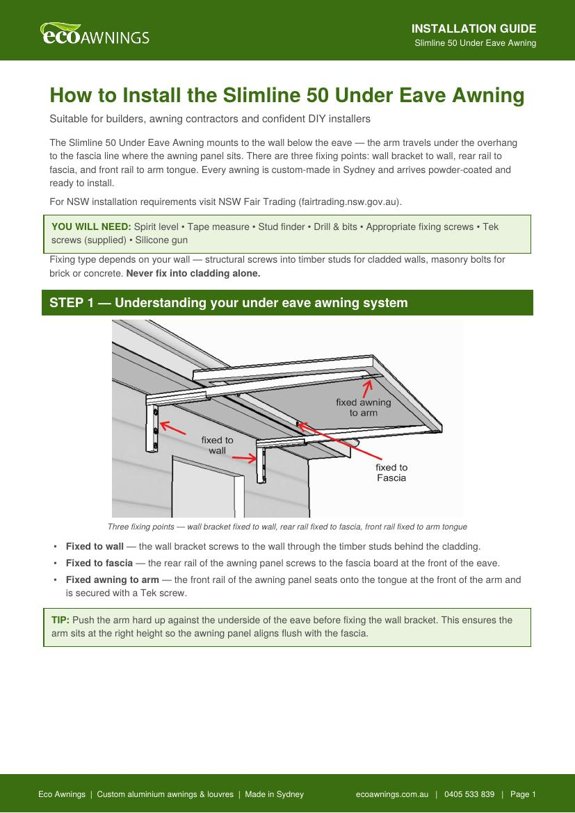

Links to Install guides and powder coat charts
Manufactured in Sydney and supplied direct – custom-made for every project, with no middlemen and no delays.
